At a glance1.5–3.9mm pitch · Indoor · Flat or faceted-curve walls · Six panel sizes

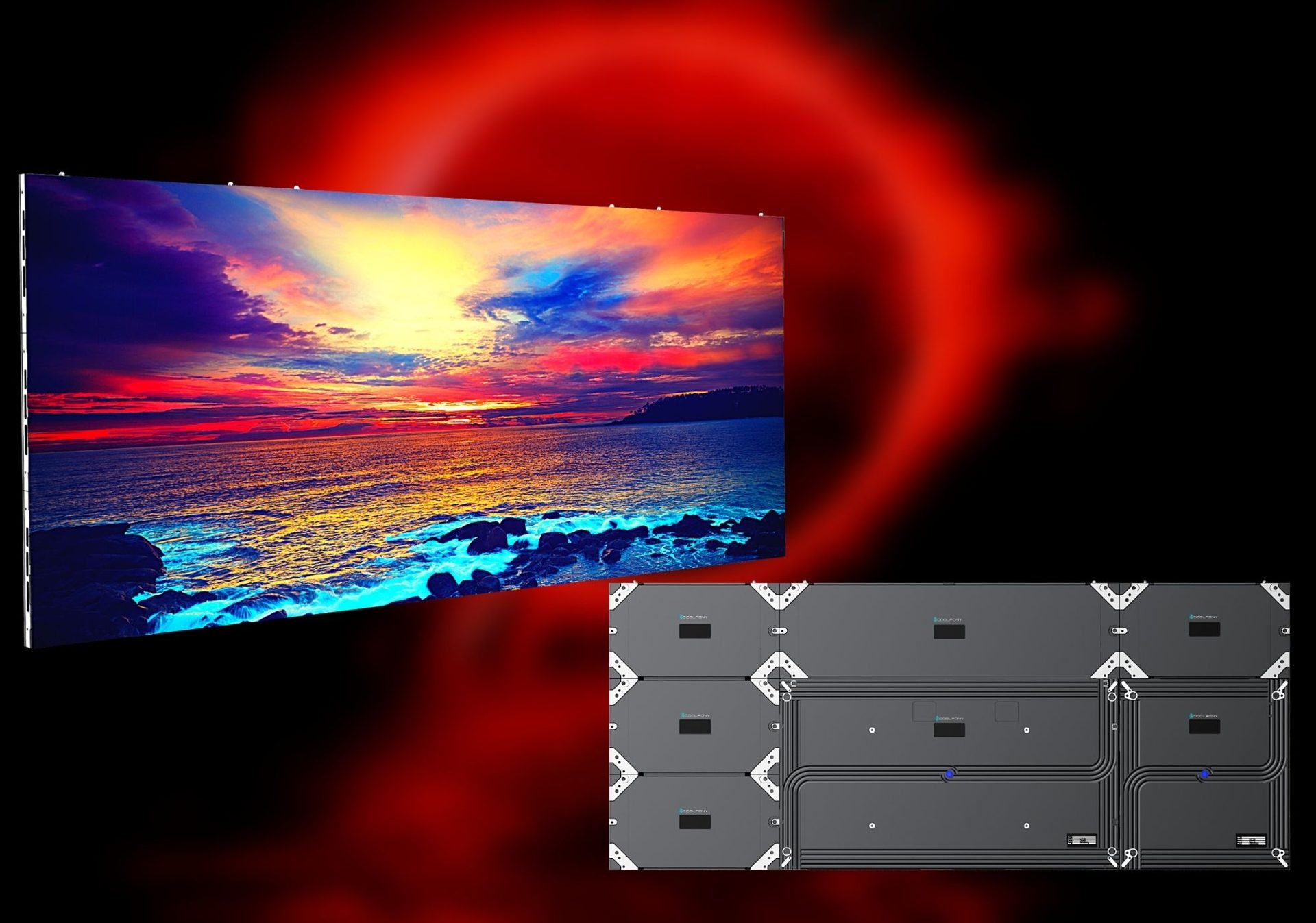

Sanctuaries. Auditoriums. Lobbies that run the length of the building. CPInfiniteHD is built for the big one — six panel sizes to fit the space, a slim profile that hugs the wall, and pitches chosen for the seats, not the spec sheet.
Before the doors open
Give it an hour and this floor is full — chairs, or no chairs, depending on the night. Youth group Wednesday, a wedding Saturday, a rehearsal in between. Your room changes every time. Your wall is the one thing that's ready before anyone else shows up.
The size is your call. The pitch follows your front row, so the person closest to it sees a picture, not pixels, and everyone behind them gets it for free. You see the layout before anyone lifts a panel. Then we get out of the way.
Designed for where your people will be
Everyone down the hall sees the reef. The person walking past sees the scales on the stripes on the clownfish. That's the whole idea: pick the pitch for your closest viewer, and one wall does both jobs — holds up at arm's length, and carries to the doors.
Tell us who'll be looking and from where. We'll help you shape the size and the layout around them — so what you imagined for your space is what your space delivers.
A canvas with an audience
| Pixel Pitch | 1.5mm | 1.9mm | 2.6mm | 2.6mm Mini4:1 | 3.9mm |
|---|---|---|---|---|---|
| Scan Rate | 1/45 | 1/32 | 1/32 | 1/32 (1/16 @7680Hz) | 1/16 |
| LED Arrangement | Indoor SMD Black | ||||
| Drive Mode | Constant current | ||||
| Viewing Angle | 160° horizontal / 140° vertical | ||||
| Brightness | 1000 cd/m² | ||||
| Grayscale | 16-bit | ||||
| Refresh Rate | 7,680Hz | ||||
| Panel Sizes (×281.25mm) | 1000×281.25 | 750×281.25 | 500×281.25 | ||
| Panel Weight (×281.25mm) | 6.5 | 4.5 | 3.5 kg per panel | ||
| Panel Sizes (×562.5mm) | 1000×562.5 | 500×562.5 | 250×562.5 | ||
| Panel Weight (×562.5mm) | 11.5 | 5.5 | 3.2 kg per panel | ||
| Cabinet Depth | 27.2mm / 1.07" | ||||
| Max Power Consumption | 282W/m² | ||||
| Average Power Consumption | 150W/m² | ||||
| Input Voltage | AC 110–220V | ||||
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) | ||||
| Operating Humidity | 10%–90% RH | ||||
| Ingress Protection | IP20 (Indoor) | ||||
| Installation Method | Direct-to-Wall / Hanging / Ground Support | ||||
| Certifications | EMC Class B, CE, ETL, FCC |
Finished wall dimensions follow the available panel increments. Cabinet depth excludes the rest of the installation. The range includes four distinct pitches; 2.6mm Mini4:1 is a separate model at the same nominal pitch.
Somewhere between the first panel and the last, it stops being a plan and starts being your room. Tell us what you're picturing — a photo of your wall and a sense of who'll be in front of it is plenty — and we'll help you picture the layout, the look, and what your space becomes.
info@coolponytech.com · Dallas, Texas
CPSmartPix and CPMarvelHD for closer viewing and finer detail · CPIllusionHD for curved layouts
